No amount of encryption, intrusion detection, or zero-trust architecture matters if an attacker can walk through the front door of your data center and physically remove a hard drive. Physical security is the bedrock upon which all other security controls are built. A single bypassed door, an unmonitored loading dock, or an unlocked telecommunications closet can undo millions of dollars in cybersecurity investment in minutes.
CISSP Domain 3 (Security Architecture and Engineering) devotes significant attention to physical security requirements precisely because the exam's authors understand this reality. Whether you are studying for a certification, designing a new facility, or hardening an existing one, physical security demands the same rigor and systematic thinking that we apply to network architectures and software development lifecycles.
The convergence of physical and logical security is accelerating. Modern access control systems feed events into SIEMs. Video analytics trigger automated lockdowns through integrated building management systems. Badge data correlates with VPN logs to detect impossible travel. Organizations that treat physical security as separate from cybersecurity are building their defenses on sand.
This guide covers the complete spectrum of physical security: from Crime Prevention Through Environmental Design (CPTED) principles that shape how we think about space, through security zones and defense in depth, to the specific technologies and systems that protect facilities, data centers, and critical assets. We will examine fencing and perimeter barriers, lighting and surveillance, access control mechanisms, fire suppression, environmental controls, intrusion detection, and special environment requirements. By the end, you will have a comprehensive framework for building or evaluating a physical security program.
CPTED: Crime Prevention Through Environmental Design
Crime Prevention Through Environmental Design is a multidisciplinary approach to deterring criminal behavior through the strategic design of the built environment. Rather than relying exclusively on guards, locks, and cameras, CPTED shapes spaces so that criminal activity becomes inherently more difficult and more observable.
The Four Core Principles
Natural Surveillance is the principle of designing spaces so that legitimate users can easily observe all activities occurring within them. This means placing windows to face parking areas and walkways, using low landscaping that does not create hiding spots, positioning workstations so employees can see entry points, and installing transparent materials where opacity is not required. The goal is to make potential offenders feel watched without creating a prison-like atmosphere. When people feel observed, studies consistently show that criminal behavior decreases.
Natural Access Control uses design elements to guide people toward legitimate entry points and away from restricted areas without relying on physical barriers. Pathways, signage, changes in pavement texture, landscaping, and architectural features all direct foot traffic. A well-designed campus funnels visitors toward a reception area naturally, rather than requiring them to navigate a maze of locked doors and "no entry" signs. The key insight is that most people will follow the path of least resistance, so making the legitimate path easier than the illegitimate one is a powerful control.
Territorial Reinforcement creates clear ownership cues that distinguish public space from private space. Borders, fences, signage, changes in landscaping, different paving materials, and even art installations communicate that someone owns this space and is paying attention to it. Research consistently demonstrates that spaces with strong territorial cues experience less crime than ambiguous spaces where ownership is unclear. A well-maintained garden bed with a company logo, a clearly marked property boundary with decorative fencing, and personalized workspace areas all reinforce territory.
Maintenance is sometimes overlooked as a CPTED principle, but it is one of the most powerful. Well-maintained environments signal active monitoring and care, which discourages criminal activity through what criminologists call the "broken windows" theory. When graffiti is cleaned immediately, burned-out lights are replaced within hours, litter is removed daily, and landscaping is kept trimmed, potential offenders perceive that the space is watched and that criminal acts will be noticed and reported. Conversely, neglected environments signal that no one is paying attention, inviting escalating criminal behavior.
Second-Generation CPTED
While the original four principles focus on the physical environment, second-generation CPTED expands the framework to include social factors. These include social cohesion among the community using the space, connectivity between different user groups, the overall community culture regarding security and responsibility, and threshold capacity, meaning how many people use the space and whether it feels active or deserted. A facility where employees know each other, greet visitors, and take ownership of their environment is inherently more secure than one where people keep to themselves and ignore strangers in the hallway.
The beauty of CPTED is that it reduces crime without creating a fortress aesthetic. Employees, customers, and visitors experience a welcoming environment while criminal actors face an environment that works against them at every turn. You can plan your physical security approach, including CPTED principles, using our Physical Security Planner.
Security Zones and Defense in Depth
Effective physical security organizes space into concentric zones, each with progressively stronger controls. This zone model ensures that an attacker must defeat multiple independent layers to reach critical assets, buying time for detection and response.
The Four-Zone Model
| Zone | Access Method | Monitoring | Escorting | Examples |
|---|---|---|---|---|
| Public | Open access | General CCTV | None required | Parking lots, lobbies, reception areas |
| Controlled | Badge or sign-in | CCTV + access logs | Visitors escorted | Office floors, conference rooms, break areas |
| Restricted | Badge + PIN or biometric | CCTV + real-time monitoring | All non-cleared escorted | Server rooms, network closets, executive areas |
| Critical | Multi-factor + dual control | 24/7 live monitoring + recording | No uncleared access | Data center cores, vaults, SCIF, evidence rooms |
Each zone transition represents a checkpoint where identity is verified and authorization is confirmed. The transition from public to controlled might require a badge swipe and sign-in. Moving from controlled to restricted adds a PIN or biometric. Entering a critical zone might require two authorized individuals presenting credentials simultaneously (dual control) plus visual verification by security personnel.
Physical Defense in Depth
Beyond the four-zone model, physical defense in depth describes the specific layers from the outermost perimeter inward:
- Perimeter: Fencing, walls, barriers, lighting, CCTV, intrusion detection sensors
- Building Envelope: Reinforced doors, windows, walls; access-controlled entry points
- Floor/Area: Interior access control, corridor cameras, motion sensors
- Room: Individual room access control, environmental sensors, local alarms
- Object: Rack locks, safes, cable locks, tamper-evident seals, GPS trackers
In a data center context, this translates to a specific progression: the perimeter fence with vehicle barriers, the building lobby with visitor management, the network operations center (NOC) with badge access, the server hall with biometric verification, individual cages with separate locks, and finally individual racks with keyed or electronic locks.
Zone Transition Monitoring
Every zone transition should generate a log entry that includes the identity of the person, the timestamp, the specific door or portal used, and the authentication method. These logs feed into the physical access control system (PACS) and ideally integrate with the organization's SIEM for correlation with logical access events. Anomalies such as access at unusual hours, rapid sequential access across distant zones, or access without a corresponding exit should trigger alerts for investigation.
Fencing, Barriers, and Perimeter Protection
The perimeter is the first physical layer an attacker must defeat. Effective perimeter protection combines passive barriers with active detection to delay intrusion and alert defenders.
Fencing Standards
| Fence Height | Deterrent Level | Purpose |
|---|---|---|
| 3–4 feet | Minimal | Boundary marker, deters casual trespass |
| 5–6 feet | Moderate | Deters most casual intruders, standard commercial |
| 7 feet | High | Meets many regulatory and insurance requirements |
| 8+ feet with razor wire | Maximum | Military, government, critical infrastructure standard |
Chain-link fencing is the most common commercial option, typically 9-gauge or 11-gauge wire with 2-inch mesh. Anti-climb features include outrigger arms angled outward at 45 degrees, razor wire or concertina wire along the top, and mesh small enough to prevent finger and toe holds. For higher security, welded mesh panels, palisade fencing, or anti-cut fencing that resists bolt cutters and angle grinders are available.
PIDAS: Perimeter Intrusion Detection and Assessment System
PIDAS integrates physical barriers with electronic detection to create a monitored perimeter. Typical PIDAS installations include dual fencing with a detection zone between them, taut-wire sensor fencing that detects cutting or climbing, buried fiber-optic cable that senses ground vibration, microwave beams between fence posts, and CCTV cameras triggered by sensor alarms. The "assessment" component is critical: the system must provide enough information for a human operator or automated analytics to determine whether an alarm is a genuine intrusion or a false alarm caused by animals, weather, or debris.
Gates and Vehicle Entry
Gate types serve different security levels. Manual gates staffed by guards provide the highest level of identity verification but are the slowest and most expensive to operate. Automatic gates with card readers or intercoms balance throughput with security. Sally ports (vehicle mantraps) use two sequential gates where only one can be open at a time, preventing vehicle tailgating and enabling inspection in the enclosed space between gates.
Vehicle Barriers and Bollard Ratings
| K-Rating | Vehicle Weight | Vehicle Speed | Kinetic Energy Absorbed | Typical Deployment |
|---|---|---|---|---|
| K4 | 15,000 lbs | 30 mph | ~120,000 ft-lbs | Commercial facilities, campus entries |
| K8 | 15,000 lbs | 40 mph | ~213,000 ft-lbs | Government buildings, utilities |
| K12 | 15,000 lbs | 50 mph | ~332,000 ft-lbs | Embassies, military, critical infrastructure |
Beyond bollards, anti-ram protection includes reinforced planters filled with soil and concrete, earthen berms that blend with landscaping, dragon's teeth (low concrete pyramids), and active barriers like wedge systems and drop-arm barriers. Natural barriers such as terrain changes, water features, and dense hedgerows with reinforced root systems can also serve as vehicle mitigation measures while maintaining aesthetic appeal.
Standoff distance is the space between the barrier and the building being protected. Blast protection standards recommend minimum distances based on the threat level: the farther the barrier is from the structure, the more the blast energy dissipates before reaching the building. The ISC (Interagency Security Committee) provides detailed standoff distance calculations based on explosive weight and building construction.
Lighting Standards and Surveillance
Lighting and surveillance work together as force multipliers. Proper lighting makes surveillance effective, and surveillance makes lighting an active deterrent rather than a passive feature.
Recommended Lighting Levels
| Area | Recommended Lux | Notes |
|---|---|---|
| Parking lots | 10–50 | Higher for high-risk areas; uniform distribution critical |
| Building perimeter | 50–100 | No dark spots; overlap between fixtures |
| Main entrances | 100–300 | Sufficient for facial identification on camera |
| Loading docks | 100–200 | Cover all vehicle and pedestrian areas |
| Interior corridors | 100–200 | Consistent levels, no shadowed alcoves |
| Server rooms | 300–500 | Sufficient for equipment labeling and maintenance |
| Vaults and evidence rooms | 300–500 | Full coverage, no shadowed areas |
Uniformity is more important than raw brightness. A parking lot with bright lights but deep shadows between them is less secure than one with moderate, even illumination. The uniformity ratio (maximum to minimum illumination) should not exceed 4:1 for security applications. LED fixtures with high color rendering index (CRI) values improve camera image quality significantly, enabling better facial identification and evidence capture.

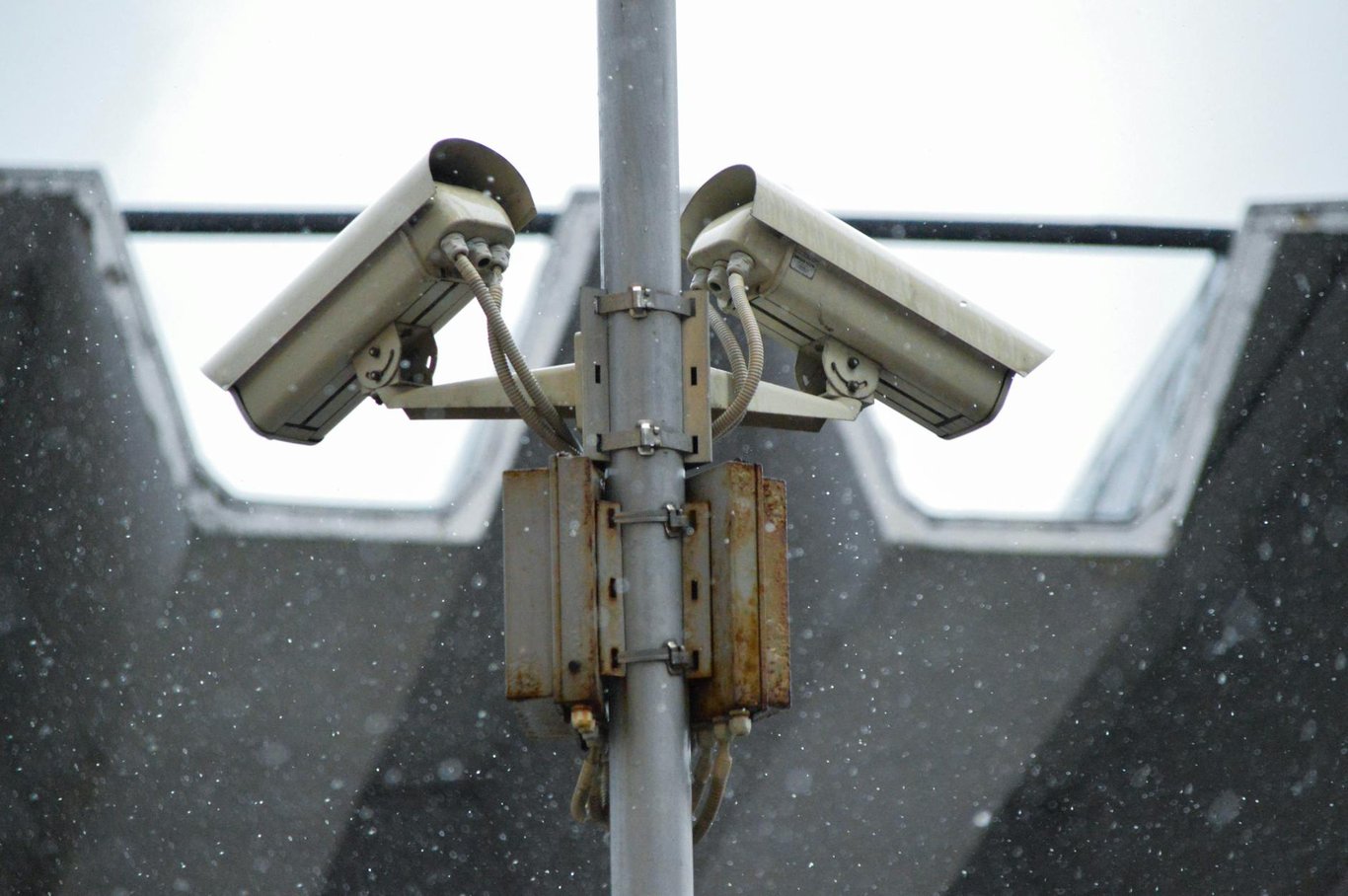

CCTV Camera Types
Fixed cameras provide constant coverage of a specific area and are the workhorse of any surveillance system. PTZ (pan-tilt-zoom) cameras can be directed to areas of interest either by operators or by automated analytics, covering larger areas but potentially missing events outside their current field of view. Dome cameras offer vandal resistance and ambiguity about their viewing direction. Bullet cameras are visible deterrents with longer range. Thermal cameras detect heat signatures regardless of lighting conditions and are excellent for perimeter detection. Infrared (IR) cameras provide usable images in complete darkness using built-in IR illuminators.
Resolution and Storage
Camera resolution directly impacts the ability to identify individuals and events. A general guideline is 80 pixels per foot for identification purposes, which means a 1080p camera covers approximately 24 feet at identification quality. Storage requirements scale dramatically with resolution and frame rate: a single 4K camera recording at 30 frames per second with H.265 compression generates approximately 15 to 25 gigabytes per day. A facility with 100 cameras retaining 30 days of footage needs 45 to 75 terabytes of storage.
Video Analytics
Modern video analytics transforms passive recording into active monitoring. Motion detection triggers recording only when activity occurs, reducing storage needs and focusing operator attention. Facial recognition matches observed faces against watchlists. License plate recognition (LPR/ANPR) logs every vehicle entering and exiting. People counting tracks occupancy. Loitering detection alerts when someone remains in an area beyond a threshold duration. Object detection identifies abandoned packages or removed items.
The cost comparison between guard force and electronic monitoring is significant. A single guard position staffed 24/7/365 with holidays, benefits, and supervision costs $150,000 to $250,000 annually. A comprehensive camera and analytics system covering the same area might cost that amount once with annual maintenance of 10 to 15 percent. However, guards provide response capability that cameras alone cannot, so most facilities use a hybrid approach.
Guard tour systems use checkpoints (NFC tags, QR codes, or GPS waypoints) to verify that guards are patrolling on schedule and visiting all required locations. Integration with the access control system allows correlation between guard presence and door events, providing a comprehensive picture of physical security activity.
Access Control Mechanisms
Access control is the gatekeeper between security zones. The mechanism chosen for each transition point must balance security requirements against throughput needs, user experience, and regulatory compliance.
Access Control Technologies
| Mechanism | Authentication Factor | Speed | Security Level | Cost |
|---|---|---|---|---|
| Metal key | Something you have | Fast | Low (easily copied) | Very low |
| Proximity card (125kHz) | Something you have | Fast | Low (easily cloned) | Low |
| Smart card (13.56MHz) | Something you have | Fast | Medium | Medium |
| Mobile credential | Something you have | Fast | Medium-High | Medium |
| PIN pad | Something you know | Medium | Low-Medium | Low |
| Card + PIN | Have + Know | Medium | High | Medium |
| Fingerprint | Something you are | Medium | High | Medium-High |
| Iris scan | Something you are | Slow | Very high | High |
| Facial recognition | Something you are | Fast | High | High |
| Mantrap | Multi-factor + physical | Slow | Very high | Very high |
| Full-height turnstile | Card/biometric | Medium | High | High |
Card Technologies
Legacy 125kHz proximity cards transmit a static ID number that can be cloned in seconds with a $25 device. Smart cards operating at 13.56MHz (MIFARE DESFire, iCLASS SE, SEOS) use encrypted communications and mutual authentication that resist cloning. Mobile credentials stored in smartphone secure elements or cloud-based platforms eliminate the card entirely, using Bluetooth Low Energy or NFC for reader communication. FIDO2 security keys, while primarily used for logical access, are increasingly being integrated into physical access control systems as well.
Anti-Tailgating and Anti-Piggybacking
Tailgating occurs when an unauthorized person follows an authorized person through an access-controlled door. Piggybacking is similar but with the authorized person's knowledge and tacit consent (such as holding the door). Countermeasures include optical turnstiles with infrared beam arrays that detect multiple bodies, overhead stereoscopic people counters, mantrap vestibules with weight sensors, anti-passback rules that deny entry if no exit was recorded, and video analytics that detect multiple people passing through on a single credential.
Mantrap Design
A properly designed mantrap includes two doors that mechanically interlock so only one can open at a time. The interior space is sized for a single person (or two for wheelchair accessibility). Weight sensors in the floor detect multiple occupants. A camera provides visual verification to security staff or to the access control system itself. Biometric verification in the interstitial space provides an additional authentication layer. Some high-security installations include environmental controls such as explosive trace detection or millimeter-wave screening within the mantrap.
Fail-Safe vs. Fail-Secure
| Characteristic | Fail-Safe | Fail-Secure |
|---|---|---|
| Power loss behavior | Unlocks | Remains locked |
| Primary concern | Life safety | Asset protection |
| Fire code compliance | Required on most egress doors | Requires alternative egress |
| Typical locations | Exterior doors, stairwells, corridors | Server rooms, vaults, evidence rooms |
| Emergency override | Not needed (already unlocked) | Must have mechanical key override or crash bar |
| Examples | Electric strike (de-energized unlock) | Magnetic lock with REX and crash bar |
Fire codes generally require that all doors on the path of egress fail-safe so that building occupants can evacuate during power failures or fire conditions. Fail-secure doors on the egress path must have mechanical override mechanisms such as crash bars (request-to-exit hardware) that allow egress without power or credentials. ADA compliance adds requirements for door opening force, width, and hardware accessibility.
For budget planning that includes access control systems and other physical security investments, use our Cybersecurity Budget Calculator.
Fire Suppression Systems
Fire is one of the most catastrophic physical threats to any facility, and data centers face unique challenges because the assets they protect are destroyed by water as effectively as by flame.
Fire Suppression Comparison
| System | Agent | Mechanism | Human Safety | Relative Cost | Environmental Impact | Best For |
|---|---|---|---|---|---|---|
| Wet pipe sprinkler | Water | Heat absorption, fuel cooling | Safe | Low | None | Offices, warehouses |
| Dry pipe sprinkler | Water (delayed) | Same as wet pipe | Safe | Medium | None | Freezing environments |
| Pre-action sprinkler | Water (dual trigger) | Same as wet pipe | Safe | Medium-High | None | Data centers (budget) |
| Deluge sprinkler | Water (all heads) | Flooding suppression | Safe | Medium | None | High-hazard industrial |
| FM-200 (HFC-227ea) | Heptafluoropropane | Heat absorption | Safe at design concentration | High | Moderate GWP | Data centers, telecom |
| Novec 1230 | FK-5-1-12 | Heat absorption | Safe at design concentration | Very high | Very low GWP | Data centers, museums |
| Inergen (IG-541) | N2/Ar/CO2 blend | Oxygen reduction (12.5%) | Safe (breathable) | High | None | Data centers, archives |
| Argon (IG-01) | Pure argon | Oxygen reduction | Caution below 15% O2 | High | None | Unoccupied spaces |
| CO2 | Carbon dioxide | Oxygen displacement | Lethal at suppression levels | Medium | None | Unoccupied industrial |
Sprinkler System Types
Wet pipe systems maintain pressurized water throughout the piping. They are the simplest, most reliable, and least expensive, but they pose a water damage risk to electronics. Dry pipe systems fill the piping with pressurized air or nitrogen, with water held back at a valve until a sprinkler head activates. They prevent pipe freezing but have a 60-second delay. Pre-action systems require two independent triggers: a detection system alarm (smoke, heat, or flame) AND a sprinkler head activation from heat. This dual-trigger design dramatically reduces the risk of accidental water discharge, making pre-action the preferred sprinkler option for data centers that cannot justify the cost of clean agent systems. Deluge systems open all sprinkler heads simultaneously when triggered, flooding the entire protected area, and are used in high-hazard industrial environments.
Clean Agent Systems
FM-200 (HFC-227ea) is the most widely deployed clean agent, extinguishing fires in less than 10 seconds by absorbing heat energy. It is safe for occupied spaces at design concentrations (7 to 9 percent) and leaves no residue. Its main drawback is a global warming potential (GWP) of 3,220, which has led some jurisdictions to restrict its use.
Novec 1230 (FK-5-1-12) offers similar performance to FM-200 with a GWP of just 1 and an atmospheric lifetime of only 5 days compared to FM-200's 33 years. It is increasingly the preferred choice for new installations despite higher initial cost.
Inergen (IG-541) blends nitrogen (52%), argon (40%), and carbon dioxide (8%) to reduce oxygen concentration to 12.5 percent, which is below the combustion threshold but remains breathable by humans. The CO2 component triggers faster breathing, compensating for the reduced oxygen. Inergen has zero GWP and zero ozone depletion potential but requires significantly more storage cylinders than chemical agents, demanding larger mechanical rooms.
Halon 1301 was the gold standard for decades but was banned under the Montreal Protocol due to its ozone-depleting properties. Existing Halon systems may continue to operate but cannot be recharged with new Halon. Organizations still using Halon should plan migration to FM-200, Novec 1230, or inert gas systems.
Detection: VESDA
Very Early Smoke Detection Apparatus (VESDA) uses a network of sampling pipes that continuously draw air from the protected space through a laser-based detection chamber. VESDA can detect smoke at concentrations far below what traditional spot detectors can sense, providing warning minutes or even hours before a fire develops. In data centers, VESDA pipes are typically installed both above the ceiling and below the raised floor to detect smoldering cables or overheating equipment at the earliest possible stage.
Data Center Considerations
Hot aisle and cold aisle containment improves cooling efficiency but creates compartments that affect fire suppression agent distribution. Suppression system designers must account for containment barriers when calculating agent concentration and distribution. Raised floor plenums and ceiling voids are separate fire compartments that each require their own detection and suppression. Zoning allows suppression to activate only in the affected area, minimizing disruption to unaffected equipment and reducing agent cost.
Environmental Controls for Data Centers
Data center environments require precise control of temperature, humidity, power, and water to maintain equipment reliability and uptime.
Temperature Control
ASHRAE Technical Committee 9.9 provides the definitive guidance for data center environmental conditions. The recommended operating range is 64 to 80 degrees Fahrenheit (18 to 27 degrees Celsius), though most operators target the lower end for safety margin. Each degree Fahrenheit above the optimal range reduces equipment life expectancy measurably, while each degree below wastes cooling energy. Hot aisle and cold aisle containment can achieve cooling efficiency improvements of 30 to 40 percent by preventing hot and cold air from mixing.
Humidity Control
The target relative humidity range of 40 to 60 percent prevents two opposite problems. Below 40 percent RH, electrostatic discharge (ESD) risk increases dramatically, potentially damaging sensitive components through invisible static sparks. Above 60 percent RH, condensation becomes a concern, particularly on cold surfaces like chilled water pipes and cold aisle panels. Modern data centers use both humidifiers and dehumidifiers controlled by multiple sensors distributed throughout the facility.
HVAC Redundancy
Redundancy configurations follow the N+1 and 2N naming conventions. N+1 means one additional unit beyond what is required to handle the full cooling load, so if three units are needed, four are installed. 2N means fully duplicated systems with independent power and distribution, so if three units are needed, six are installed on two separate systems. The choice depends on the facility's uptime tier and the cost of downtime.
Water Leak Detection
Water is the silent destroyer in data centers. Drip sensors placed under CRAC/CRAH units and near any water pipe detect leaks at specific points. Cable-style sensors run along the entire length of water pipes, under raised floors, and around the perimeter to detect moisture anywhere along their length. Flow sensors in chilled water and condensate lines detect abnormal flow rates that might indicate a rupture. All water detection alarms should trigger immediate investigation and, in some configurations, automatic isolation of the affected water zone.
Power Redundancy
The power chain from utility to equipment includes the utility feed, automatic transfer switch (ATS), generator, UPS, power distribution unit (PDU), and rack PDU. Each component can fail, so redundancy is built at every level. UPS systems provide bridging power for 5 to 30 minutes while generators start and stabilize. Generators should be tested monthly under load and have fuel contracts for extended outages. PDU monitoring tracks real-time power consumption per circuit and per rack, enabling capacity planning and identifying overloaded circuits before they fail.
For planning disaster recovery facilities with appropriate environmental controls, try our DR Site Cost Analyzer.
Intrusion Detection Systems
While access control prevents unauthorized entry through controlled points, intrusion detection systems (IDS) monitor for unauthorized entry through any means, including walls, ceilings, floors, windows, and ducts.
Sensor Types
Vibration sensors detect the physical disturbance caused by breaking through walls, cutting through fences, or forcing doors. They can be calibrated to ignore normal building vibrations while detecting intrusion-level impacts. Glass break detectors use acoustic analysis to identify the specific sound frequency pattern of breaking glass, distinguishing it from other loud noises. Passive infrared (PIR) sensors detect the heat signature of a human body moving through their detection zone. They are effective and inexpensive but can produce false alarms from HVAC airflow, sunlight changes, and animals.
Microwave sensors emit microwave energy and detect changes in the reflected pattern caused by movement. They penetrate thin walls and glass, which can be an advantage or disadvantage depending on the installation. Dual-technology sensors combine PIR and microwave detection, requiring both technologies to trigger simultaneously. This dramatically reduces false alarms because the conditions that cause false alarms in PIR (heat changes) differ from those in microwave (vibration, movement beyond walls).
Door and Window Monitoring
Door position switches using magnetic contacts detect when a door is opened, regardless of whether the access control system authorized the opening. These switches are separate from the access control lock and monitor the physical state of the door. Forced door alarms trigger when a door opens without an access control authorization event. Held-open alarms trigger when a door remains open beyond a configured time threshold. Window contacts similarly detect when windows are opened or broken.
Alarm Monitoring
Local monitoring sounds an audible alarm at the facility, which relies on nearby personnel or passersby to respond. Central station monitoring transmits alarms to a third-party monitoring center that follows predetermined response protocols, typically verifying the alarm and dispatching guards or law enforcement. Proprietary monitoring sends alarms to the organization's own security operations center, staffed by personnel who know the facility and can make nuanced response decisions.
Integration and Response
Modern intrusion detection integrates with PACS (physical access control systems) and SIEM platforms. When a vibration sensor on a perimeter wall triggers, the system can automatically activate nearby cameras, lock interior doors, alert the security operations center, and create an incident record. Response protocols should be documented, rehearsed, and tiered based on the alarm type and location: a motion sensor in a hallway after hours might trigger a guard patrol, while a forced-door alarm in a restricted zone might trigger an immediate lockdown and law enforcement notification.
False alarm management is critical for maintaining system credibility and avoiding "alarm fatigue," where operators begin ignoring alarms because so many are false. Regular testing, sensor calibration, environmental adjustment, and dual-technology sensors all reduce false alarm rates. The industry target is less than one false alarm per sensor per month.
Physical Security for Special Environments
Different environments present unique physical security challenges that require tailored solutions beyond standard commercial approaches.
Executive Offices
High-profile executives face targeted threats including corporate espionage, kidnapping, and workplace violence. Physical security measures for executive areas include panic buttons that silently alert security, bulletproof glass on exterior windows and interior partitions, secure communications rooms with acoustic dampening and electronic sweep capabilities, separate elevator access that bypasses public floors, and executive parking in controlled, surveilled areas with direct building access. Executive protection programs also address off-site security for residences and travel.
Server Rooms and Data Centers
Server rooms require two-factor access control (badge plus PIN or biometric), no exterior windows to prevent visual surveillance and forced entry, electromagnetic shielding to prevent signal emanation. The TEMPEST (Telecommunications Electronics Material Protected from Emanating Spurious Transmissions) and EMSEC (Emissions Security) standards define shielding requirements for facilities processing classified information. Even commercial data centers benefit from basic shielding to prevent electromagnetic interference and eavesdropping on unshielded data cables.
Additional server room requirements include raised floors for cable management and airflow, leak detection under the raised floor and around the perimeter, CCTV inside the room recording all personnel activities, visitor escort requirements with prior authorization, and separate HVAC systems with redundancy as discussed in the environmental controls section.
Evidence Storage
Law enforcement, legal, and compliance organizations must maintain physical evidence with unbroken chain of custody. Evidence rooms require dual-control access (two authorized individuals required to open), tamper-evident seals on all containers, video recording of all access and handling, comprehensive logging of every entry with duration and purpose, environmental controls appropriate to the evidence type (biological, electronic, chemical), and regular inventory audits. Physical penetration testing of evidence storage should be conducted annually.
Warehouse and Distribution
Shipping and receiving areas are common entry points for theft and unauthorized access. Controls include separate access-controlled areas for inbound and outbound operations, CCTV coverage of all loading docks and staging areas, inventory tracking using barcode or RFID scanning, vehicle inspection procedures, background checks for all logistics personnel, and separation of duties between receiving, inventory, and shipping staff.
Remote and Edge Locations
Unmanned remote locations such as cell towers, edge computing nodes, pumping stations, and remote offices present unique challenges. Security solutions include solar-powered or battery-backed cameras with cellular or satellite connectivity, environmental sensors that detect unauthorized entry and transmit alerts, tamper-resistant enclosures with hardened locks, motion-activated lighting and cameras, automated alerts to central monitoring when anomalies are detected, and periodic physical inspections supplemented by remote monitoring.
Building a Physical Security Program
A comprehensive physical security program integrates all the elements discussed in this guide into a managed, measurable, and continuously improving system.
Risk Assessment
Physical security begins with risk assessment. Identify the assets requiring protection: people, equipment, data, intellectual property, and reputation. Identify threats: natural disasters, criminal activity, terrorism, insider threats, and civil unrest. Evaluate vulnerabilities: uncontrolled access points, inadequate lighting, gaps in camera coverage, and single points of failure. Calculate risk as the intersection of threat likelihood, vulnerability exploitability, and impact severity. Prioritize investments where risk reduction per dollar invested is greatest. Our Risk Matrix Calculator can help quantify these assessments.
Budget Justification
Physical security spending can be justified through multiple channels. Insurance premium reductions of 10 to 30 percent are common when facilities meet specific physical security standards. Regulatory compliance requirements (HIPAA physical safeguards, PCI DSS requirement 9, SOX physical controls, NIST SP 800-53 PE family) mandate specific physical security measures. Incident prevention ROI can be calculated by estimating the cost of potential incidents (theft, vandalism, data breach through physical access, workplace violence) multiplied by their probability, compared to the cost of preventive controls.
Auditing and Testing
Physical security audits should be conducted at least annually, covering all controls from perimeter to object level. Physical penetration testing, where authorized testers attempt to bypass controls through social engineering, tailgating, lock picking, and barrier defeat, reveals vulnerabilities that paper audits miss. Red team exercises that combine physical and cyber attack vectors test the organization's ability to detect and respond to sophisticated threats.
Converged Security Operations
The most effective security programs integrate physical and logical security into a single converged security operations center (CSOC). When a badge reader in the server room logs an entry, the CSOC can verify the corresponding network login. When VPN logs show a user connecting from overseas, the CSOC can check whether their badge was used domestically the same day (impossible travel). When a camera detects after-hours movement, the CSOC can correlate with building access logs and network activity.
Vendor Management
Most physical security programs rely on external vendors for guard services, alarm monitoring, equipment installation, and maintenance. Vendor management includes service level agreements with specific response time requirements, background check standards for all vendor personnel with facility access, regular performance reviews against contractual metrics, escorted access for vendor technicians in restricted areas, and contract terms that address liability, insurance, and termination.
Measuring Success
Effective metrics for a physical security program include incident rates (break-ins, theft, unauthorized access) trending downward over time, average response time from alarm to guard arrival, false alarm rates per sensor per month trending downward, audit finding closure rates and average remediation time, employee security awareness survey scores, and physical penetration test findings trending downward. These metrics should be reported to executive leadership quarterly and should drive continuous improvement in the security program.
Start building or evaluating your physical security program today with our Physical Security Planner.
Conclusion
Physical security is not the less sophisticated cousin of cybersecurity. It is an equal and essential partner. The most advanced encryption in the world cannot protect data on a server that an attacker can physically access. The most rigorous access control policies are meaningless if someone can tailgate through a propped-open door. Physical security provides the foundation upon which all other security controls depend.
The layered approach is key. No single control, whether it is a fence, a camera, a badge reader, or a fire suppression system, provides adequate protection in isolation. Defense in depth, implemented through security zones with progressively stronger controls, ensures that an attacker must defeat multiple independent barriers. Each layer buys time for detection, and each detection point triggers response.
The convergence of physical and logical security is not optional for modern organizations. Badge data, video feeds, environmental sensors, and intrusion alarms must integrate with SIEMs, identity management systems, and incident response platforms. Organizations that maintain separate physical and cyber security operations are leaving dangerous gaps in their detection and response capabilities.
Whether you are designing a new facility, hardening an existing one, or evaluating a colocation provider, the principles in this guide provide a comprehensive framework for assessment and improvement. Begin by understanding your assets, threats, and vulnerabilities. Build layered controls across all security zones. Measure, audit, and improve continuously.
Take the first step by mapping your facility's physical security needs with our Physical Security Planner.
